1. Features:
The main parts of VA series of lever blocks are made of superb steel which has the following characteristics in design and service,
1. Safe, reliable and durable in use
2. Excellent performance and minimum maintenance
3. Small volume, light weight and portable in carrying
4. Small handpull and high efficieccy
5. Advanced structure and attractive appearance

2. Introduction

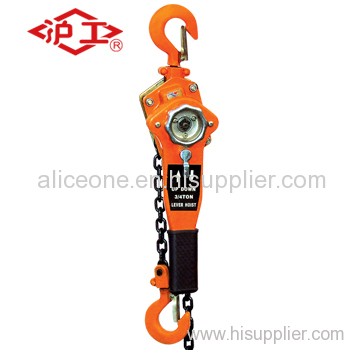

Lever hoist is a hand operated lifting and pulling appliance which is portable and versatile. It is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.

3. Parameters

Model	VA0.25	VA0.5	VA0.75	VA1	VA1.5	VA2	VA3	VA6
Capacity    t	0.25	0.5	0.75	1	1.5	2	3	6
Standard Lift    m	1	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test load    t	0.375	0.75	1.13	1.5	2.25	3	4.5	9
Min distance between hooks			325	335	380	380	480	620
Effort required to lift max load  N			140	140	220	220	320	3404
Diameter of load chain   mm	4	5	6	6	8	8	10	10
Net weight  kg			7	7.5	11	12	21	31
Extra weight per meter of extra lift cm			0.92	0.92	1.6	1.6	2.4	4.8
